Bending Tools / Amada Style Tools
Request for Quote

Hemming Tools

Compatible with Press Brakes : ACL, Accupress, AM- Machinery, Atlantic, Adira, Baykal, BL, Boschert Boutillon, Bystronic - Beyler Euro-B, Colgar, Dener, Deratech, Durmazlar, Ermaksan, Farina, Gade, Gasparini, Haco, Hindustan, JMT, LFK, Metafab, MVD, Prima Power, Rico, Salvaginini. They are perfectly compatible with Amada Design.

1301 / 30˚ / R

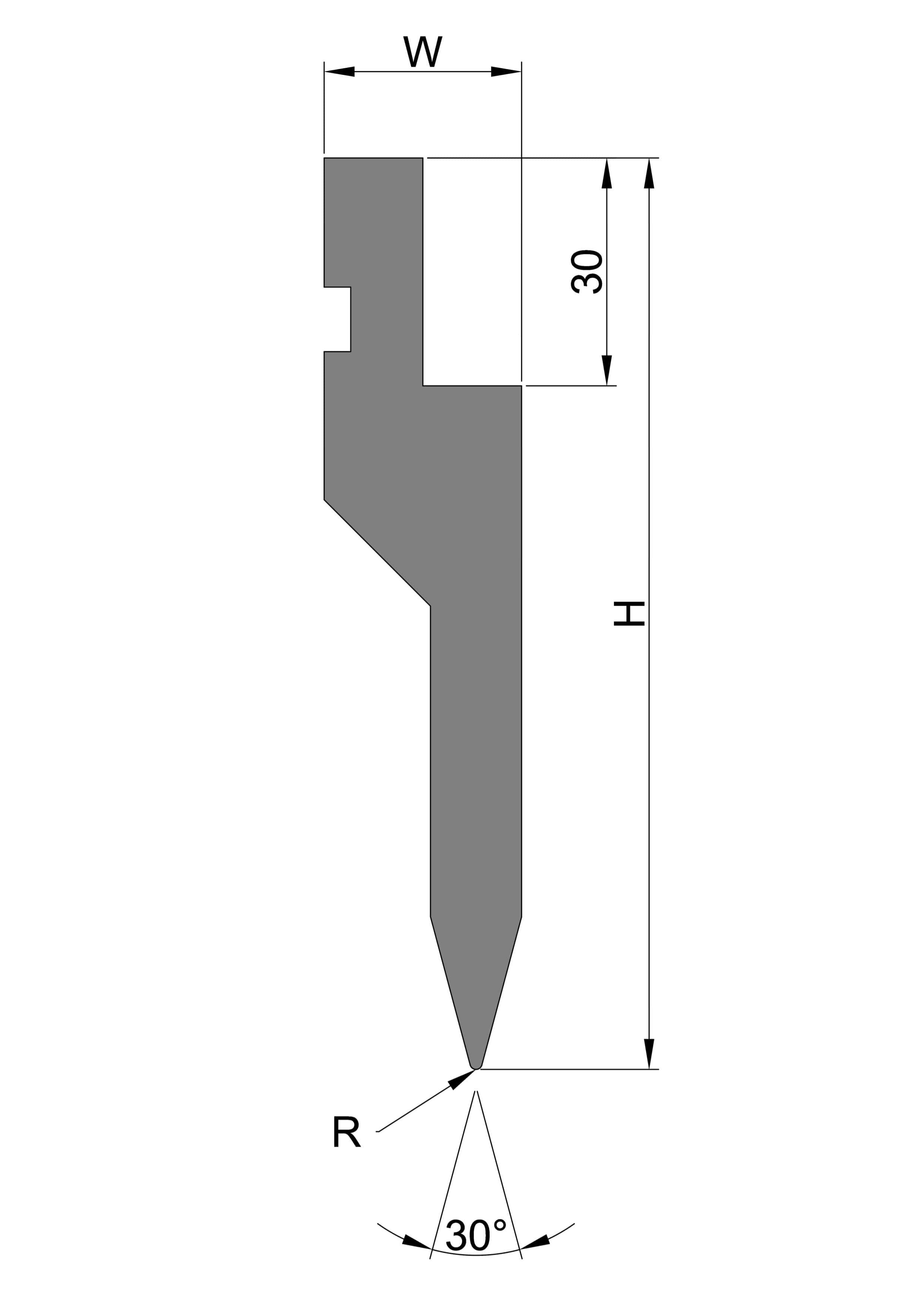

Two - Stage Hemming Punch - 30˚

Two - Stage Hemming Punch - 30˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 35˚

1302 / 28˚ / R

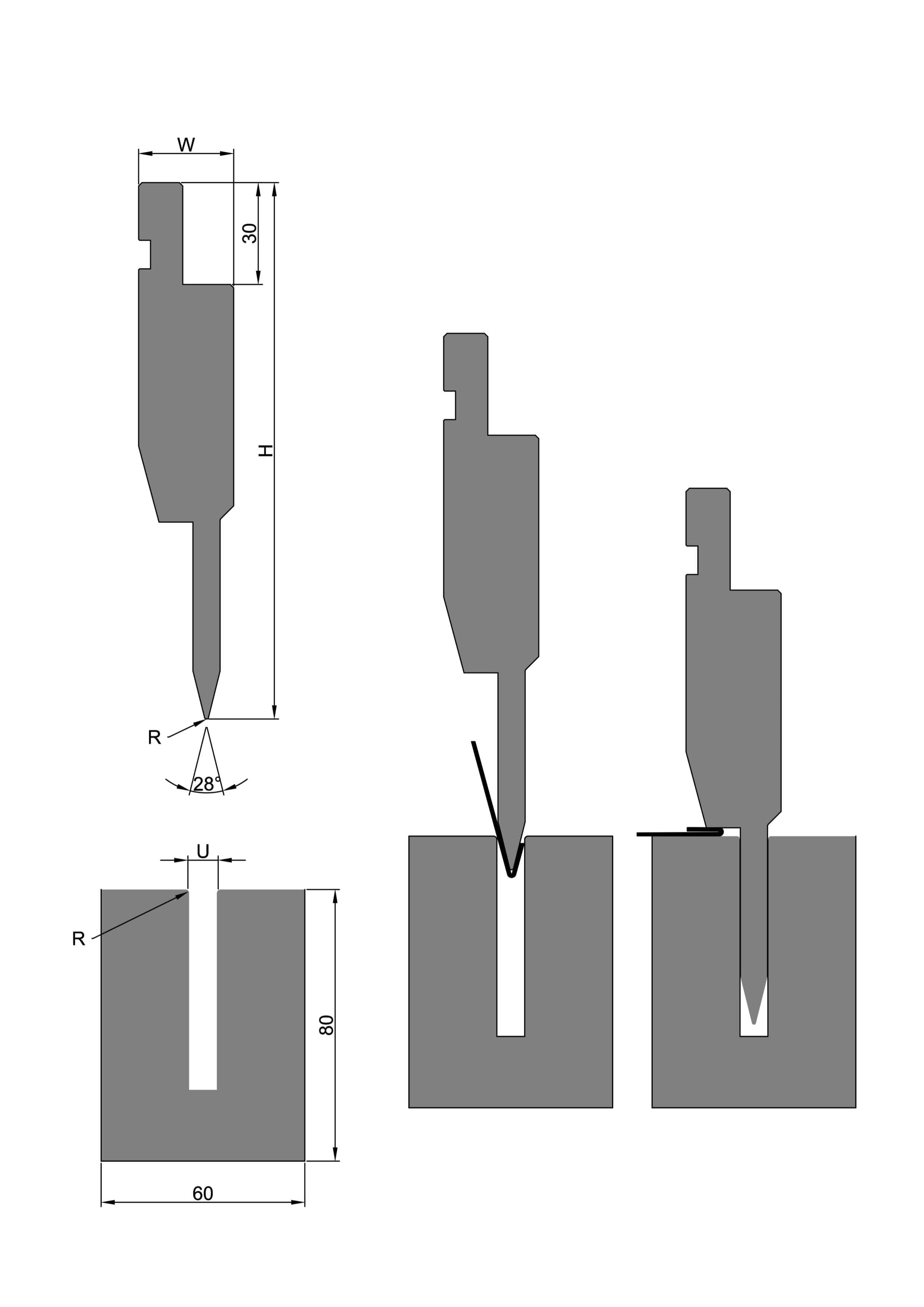

U - Bending Hemming Tool

U - Bending Hemming Tool

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
'U' available from 8 to 12 mm
Available from 26˚ to 35˚

1303 / 26˚ / V

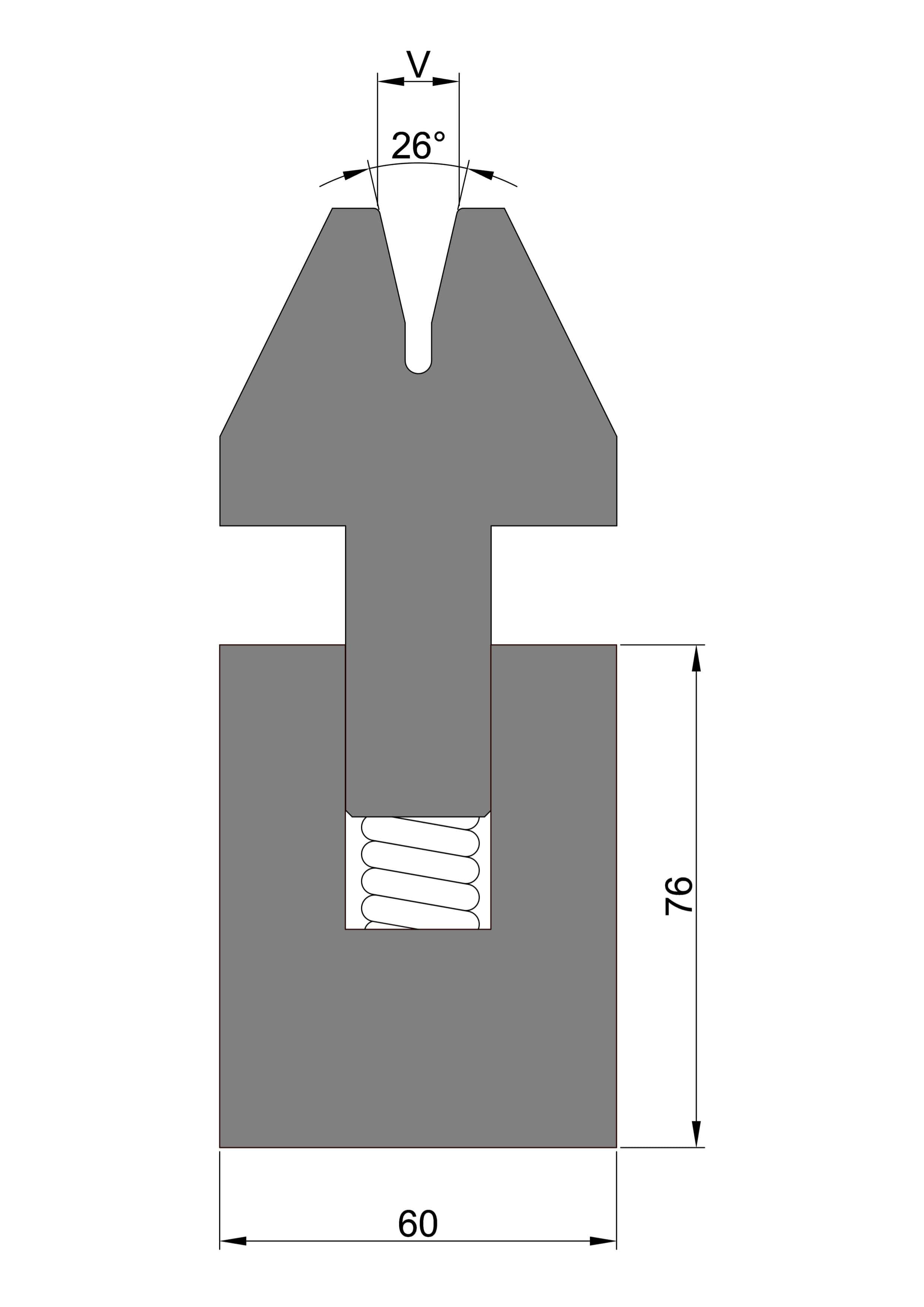

Spring Loaded Hemming Die - 26˚

Spring Loaded Hemming Die - 26˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
'V' available from 6 to 12 mm
Available from 26˚ to 35˚

1304 / 30˚ / V

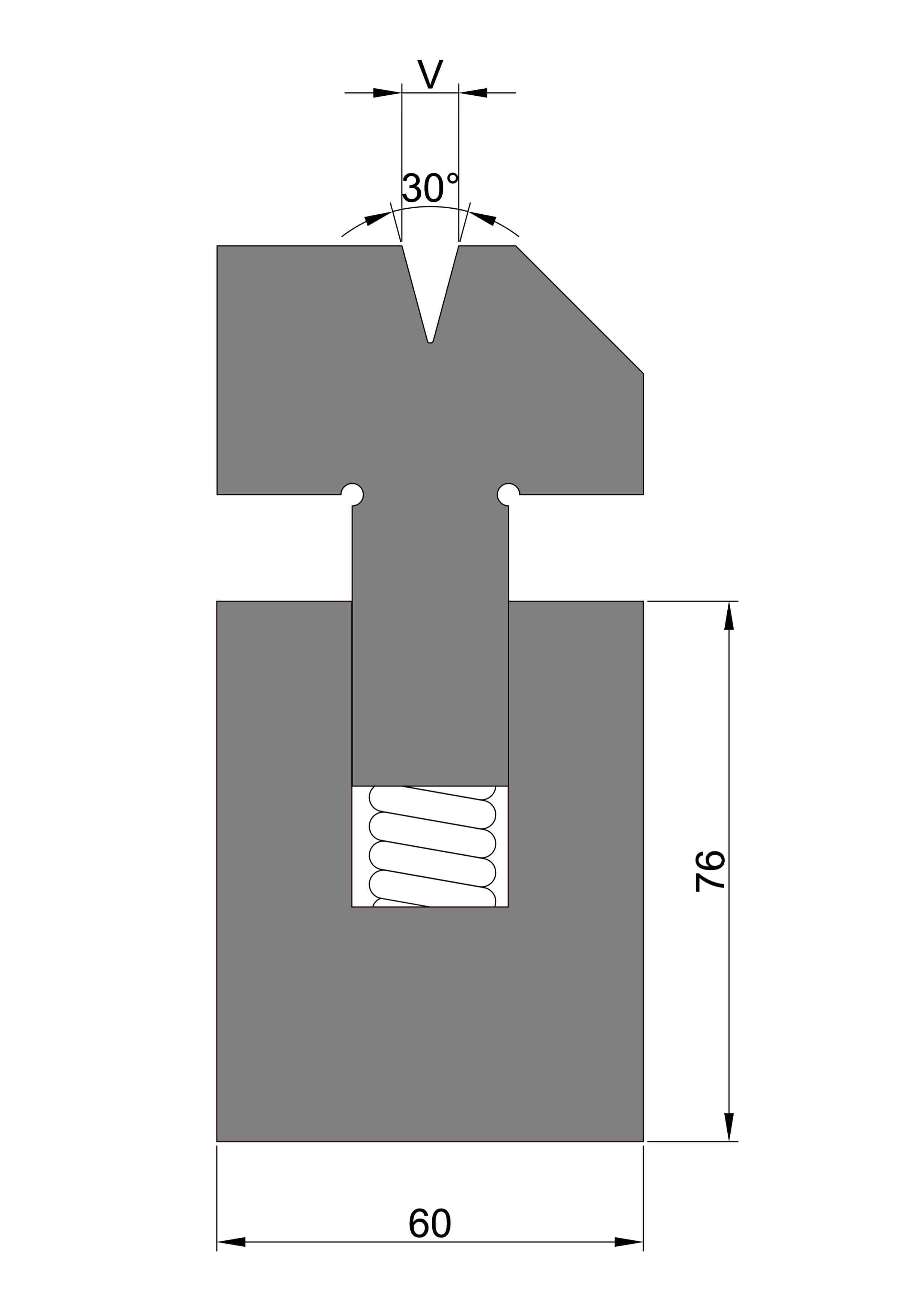

Spring Loaded Hemming Die - 30˚

Spring Loaded Hemming Die - 30˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
'V' available from 6 to 12 mm
Available from 26˚ to 35˚

1305 / 35˚ / V

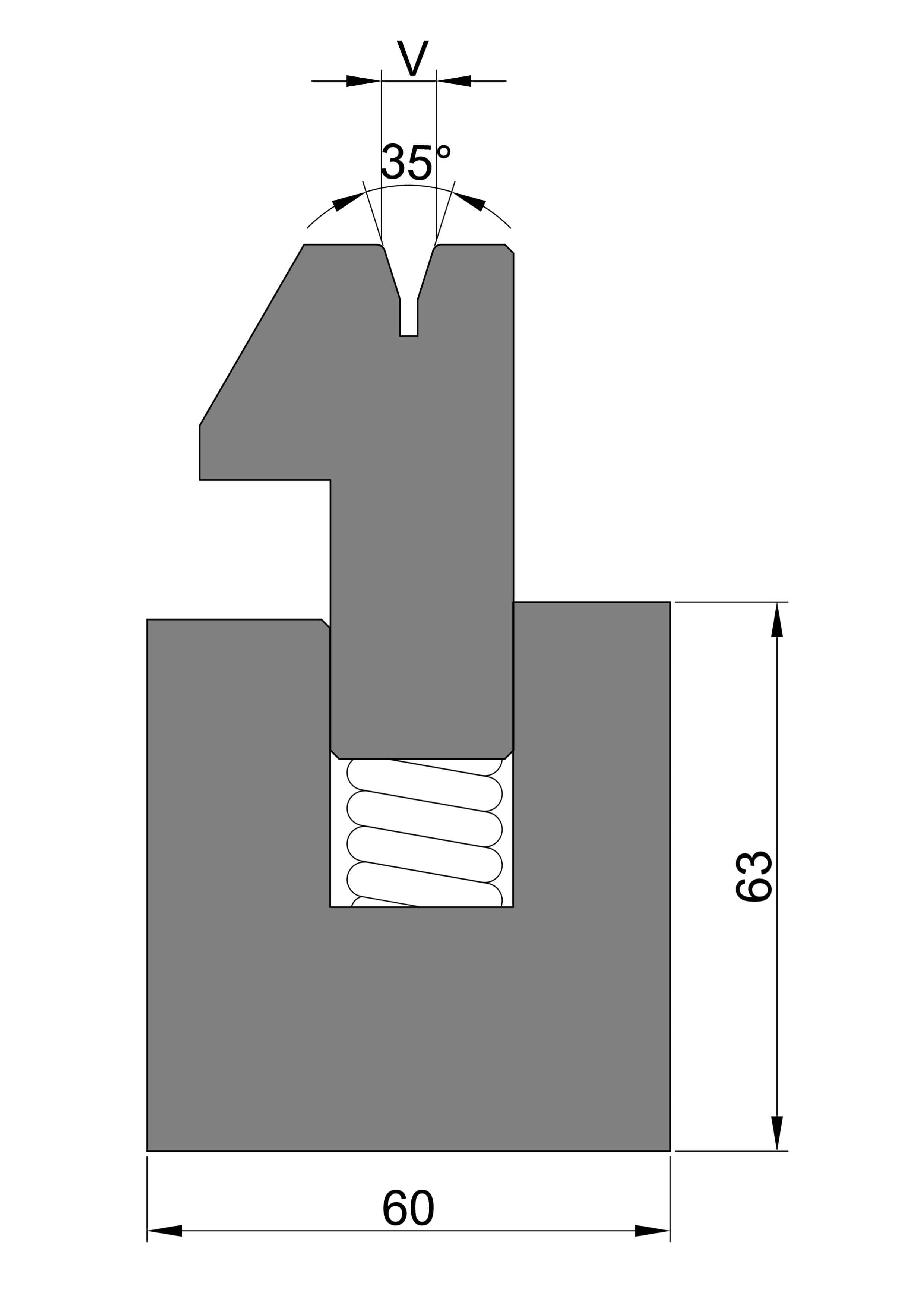

Spring Loaded Hemming Die - 35˚

Spring Loaded Hemming Die - 35˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
'V' available from 6 to 12 mm
Available from 26˚ to 35˚
