Die

Compatible with Press Brakes : ACL, Accupress, AM- Machinery, Atlantic, Adira, Baykal, BL, Boschert Boutillon, Bystronic - Beyler Euro-B, Colgar, Dener, Deratech, Durmazlar, Ermaksan, Farina, Gade, Gasparini, Haco, Hindustan, JMT, LFK, Metafab, MVD, Prima Power, Rico, Salvaginini. They are perfectly compatible with Amada Design.

×

Tool Type

Punch Die Punch and Die Set Hemming Tools Punch Holder Die Holder Radius Punch Insert Special Tools

Bending Tools

Amada Style Trumpf - Wila Style LVD Style Bystronic Beyeler Style American Style

Punching Tools

Amada Style Trumpf Style Murata Style Multiools Special Tools

Filter

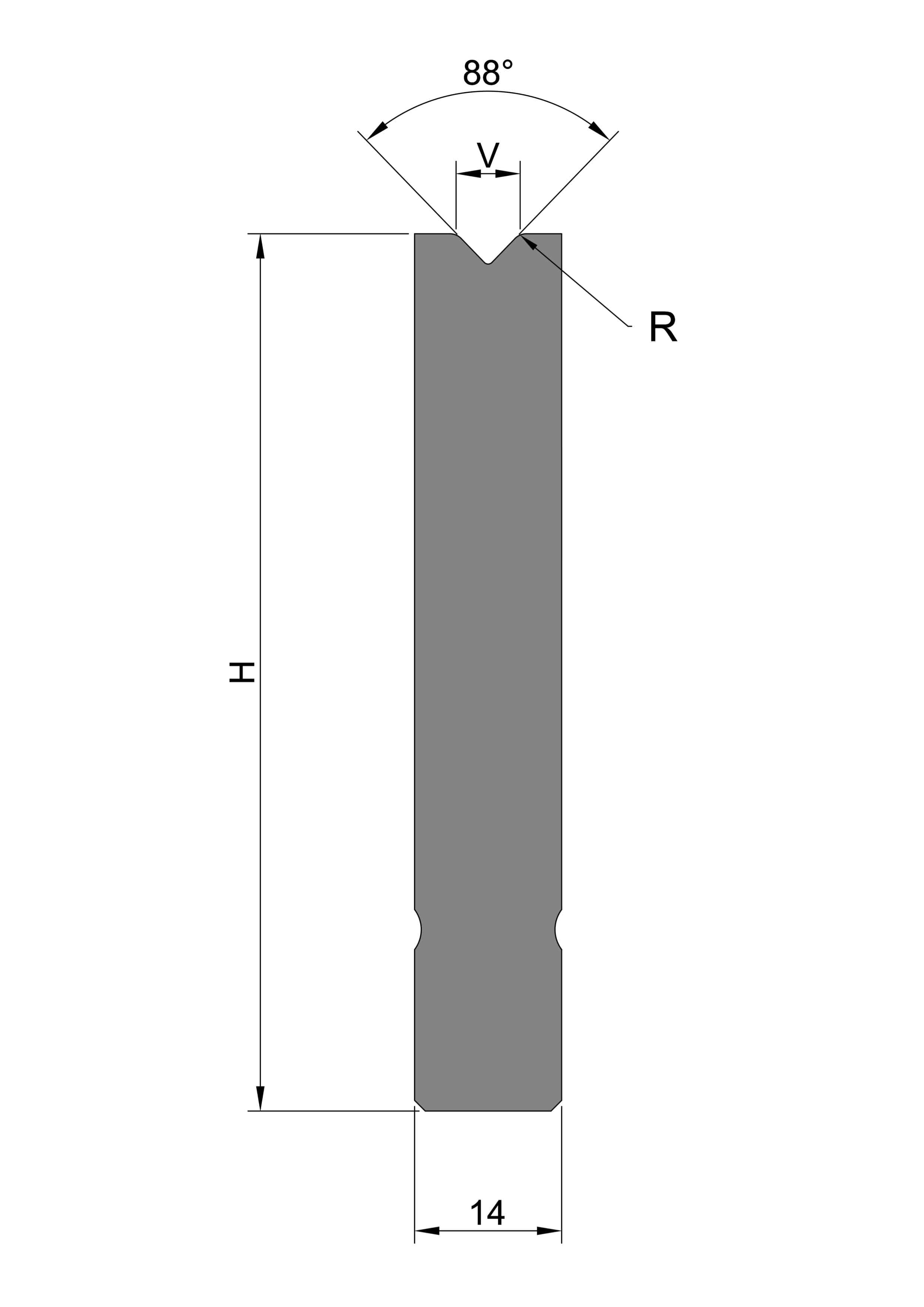

1101 / 88˚ / V

Self - Centering 1 'V' Die - 88˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

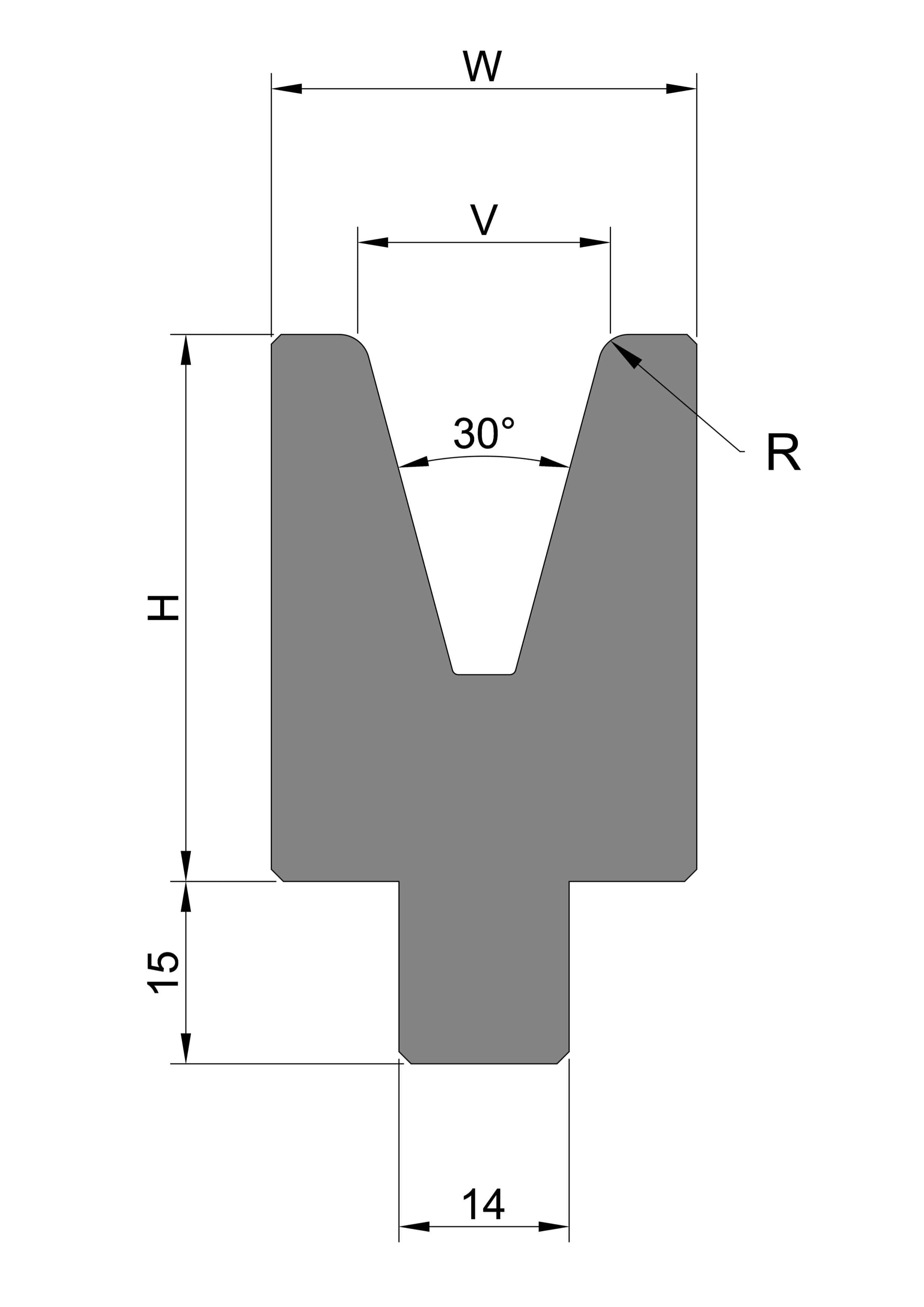

1102 / 30˚ / V

Self - Centering 1 'V' Die - 30˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

1103 / 75˚ / V

Self - Centering 1 'V' Die - 75˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

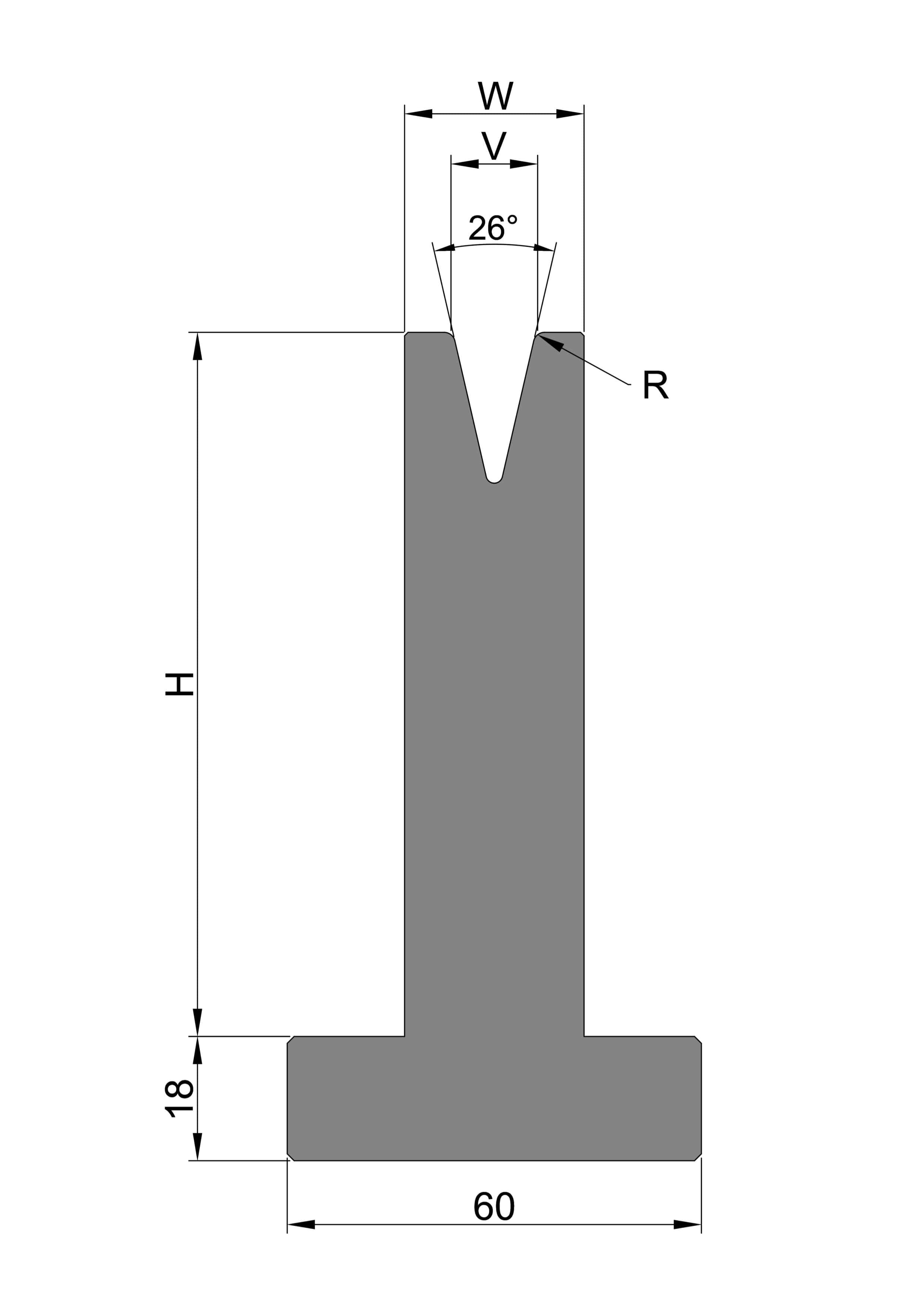

1104 / 26˚ / V

T - Die - 26˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 90˚

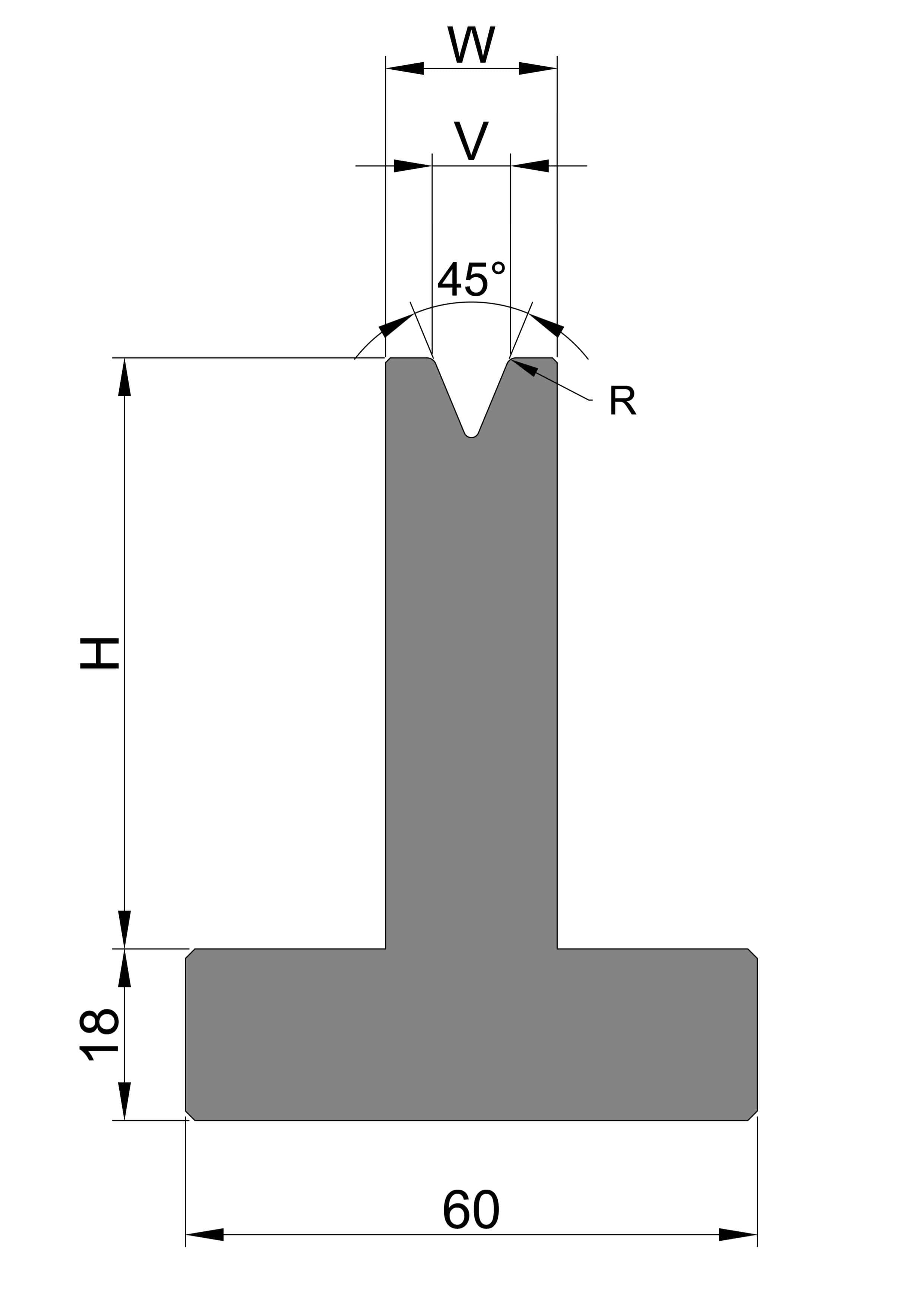

1105 / 45˚ / V

T - Die - 45˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 90˚

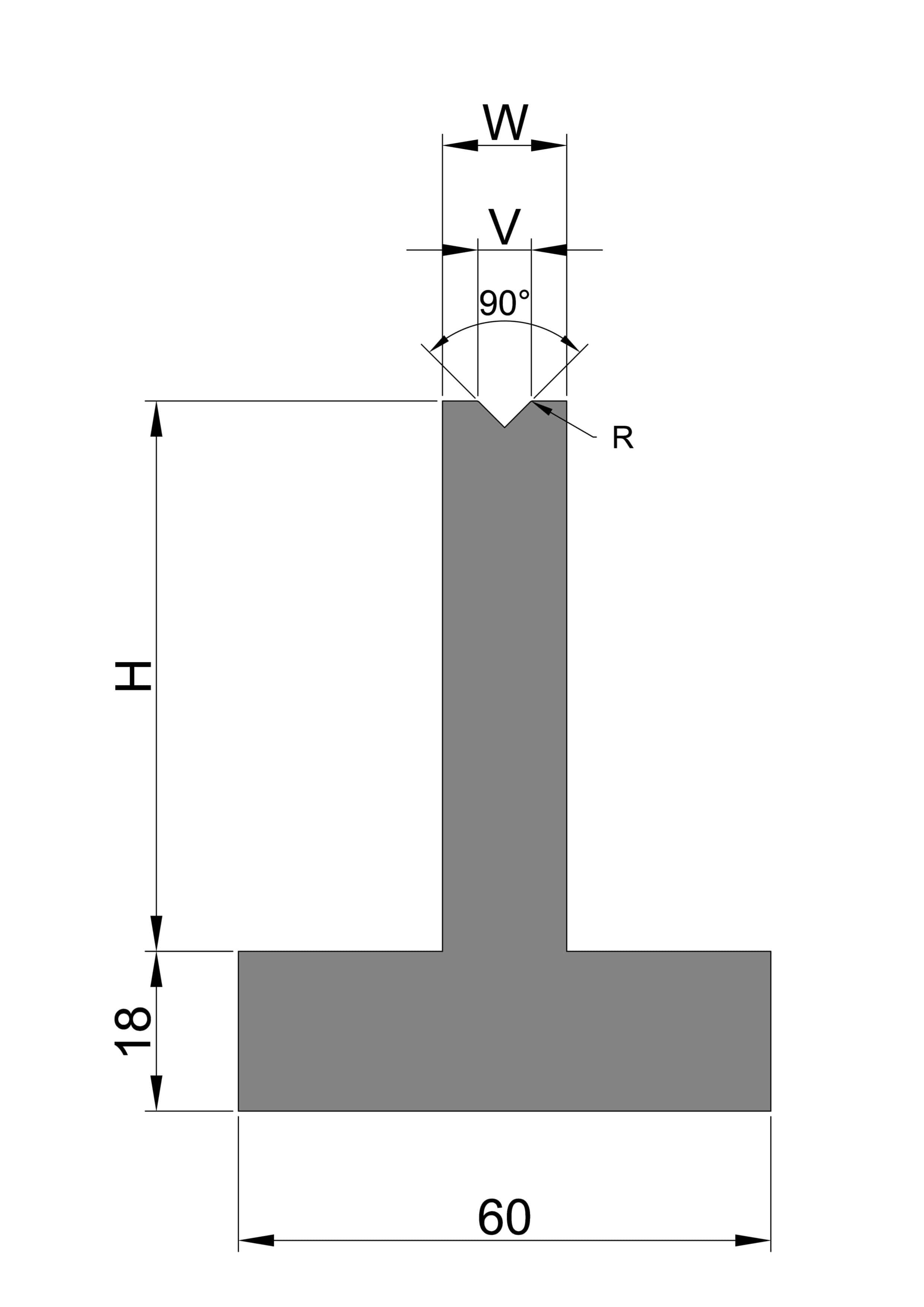

1106 / 90˚ / V

T - Die - 90˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 90˚

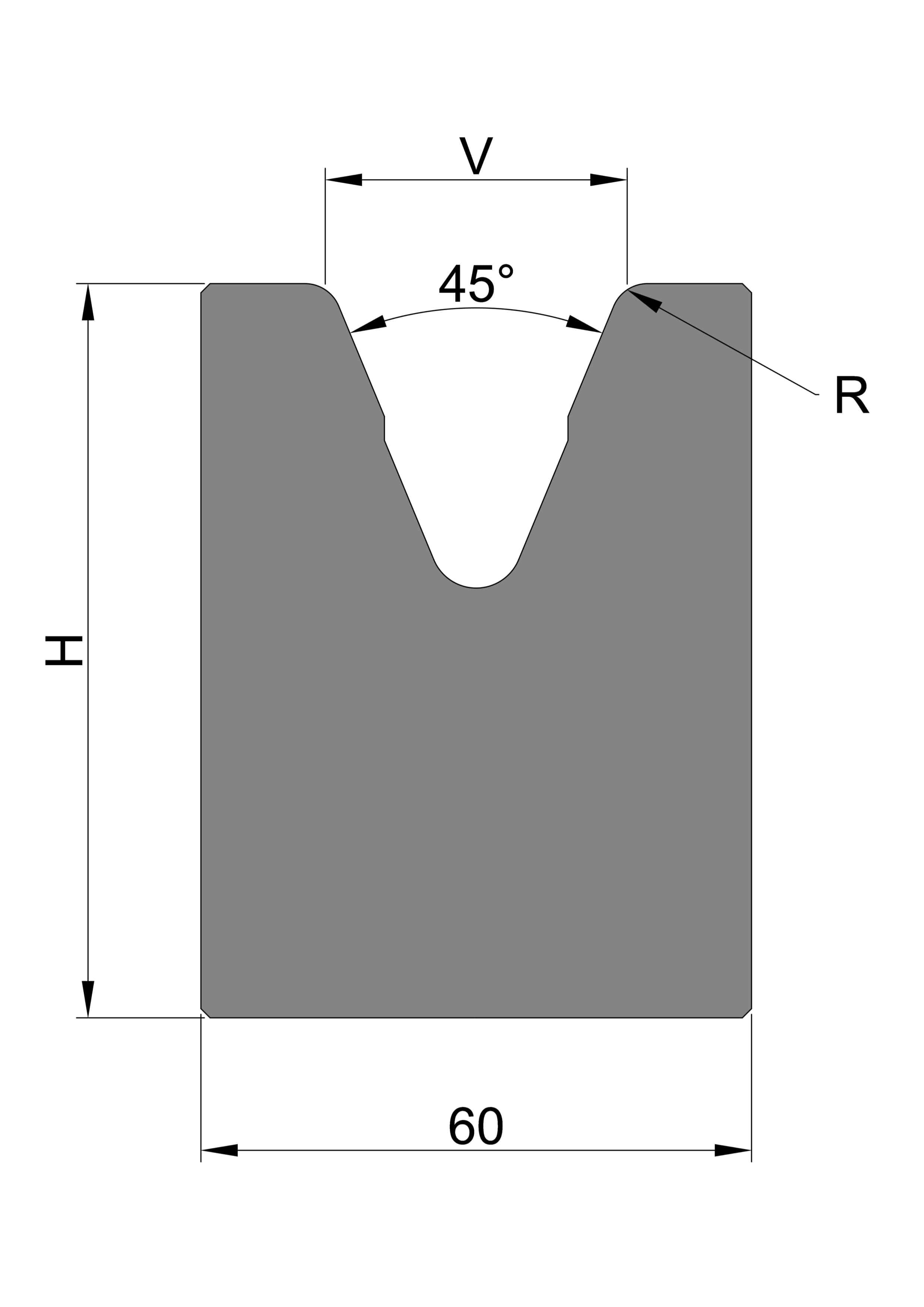

1107 / 45˚ / V

1 'V' Die - 45˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

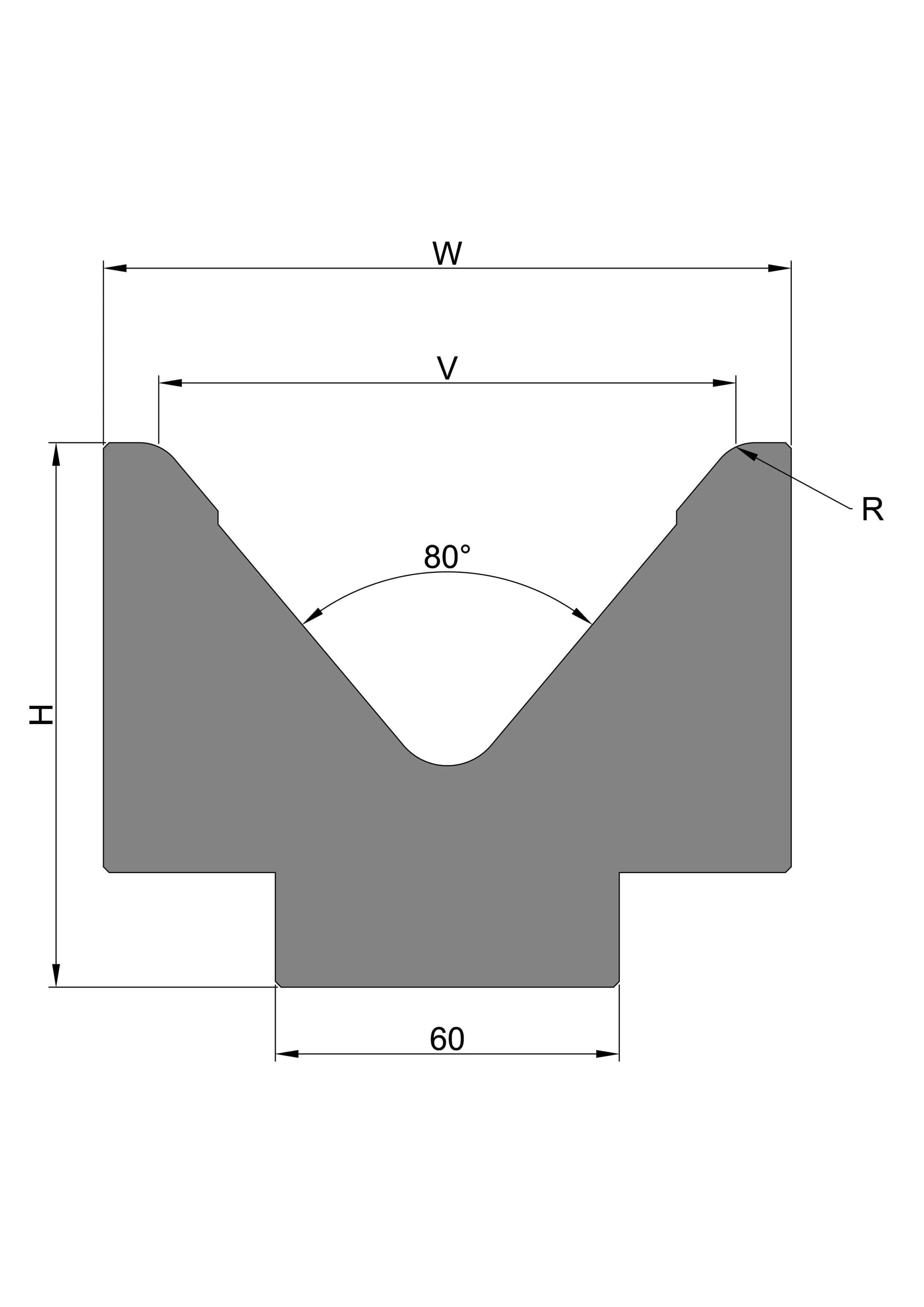

1108 / 80˚ / V

1 'V' Die - 80˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 60˚ to 90˚

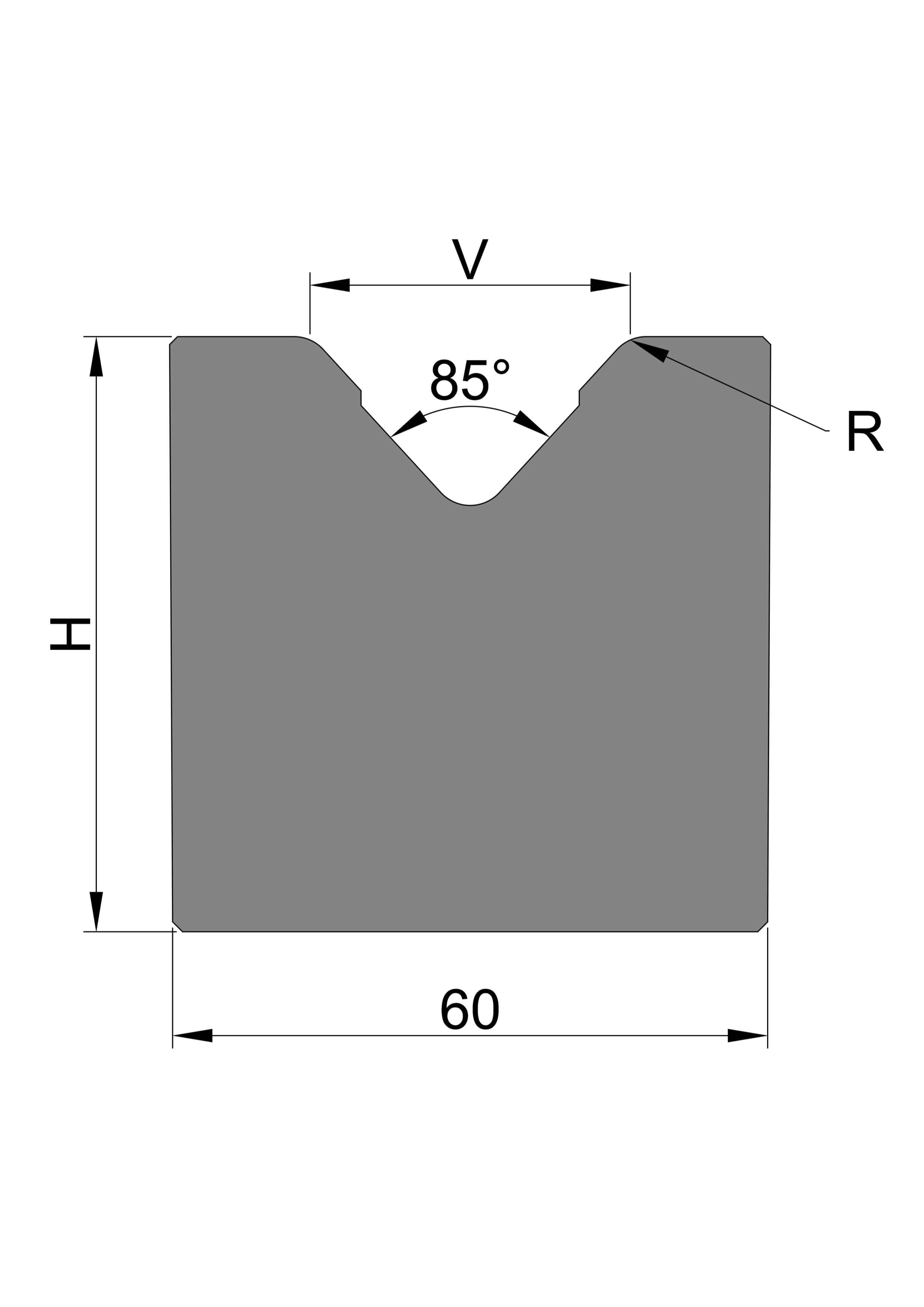

1109 / 85˚ / V

1 'V' Die - 85˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

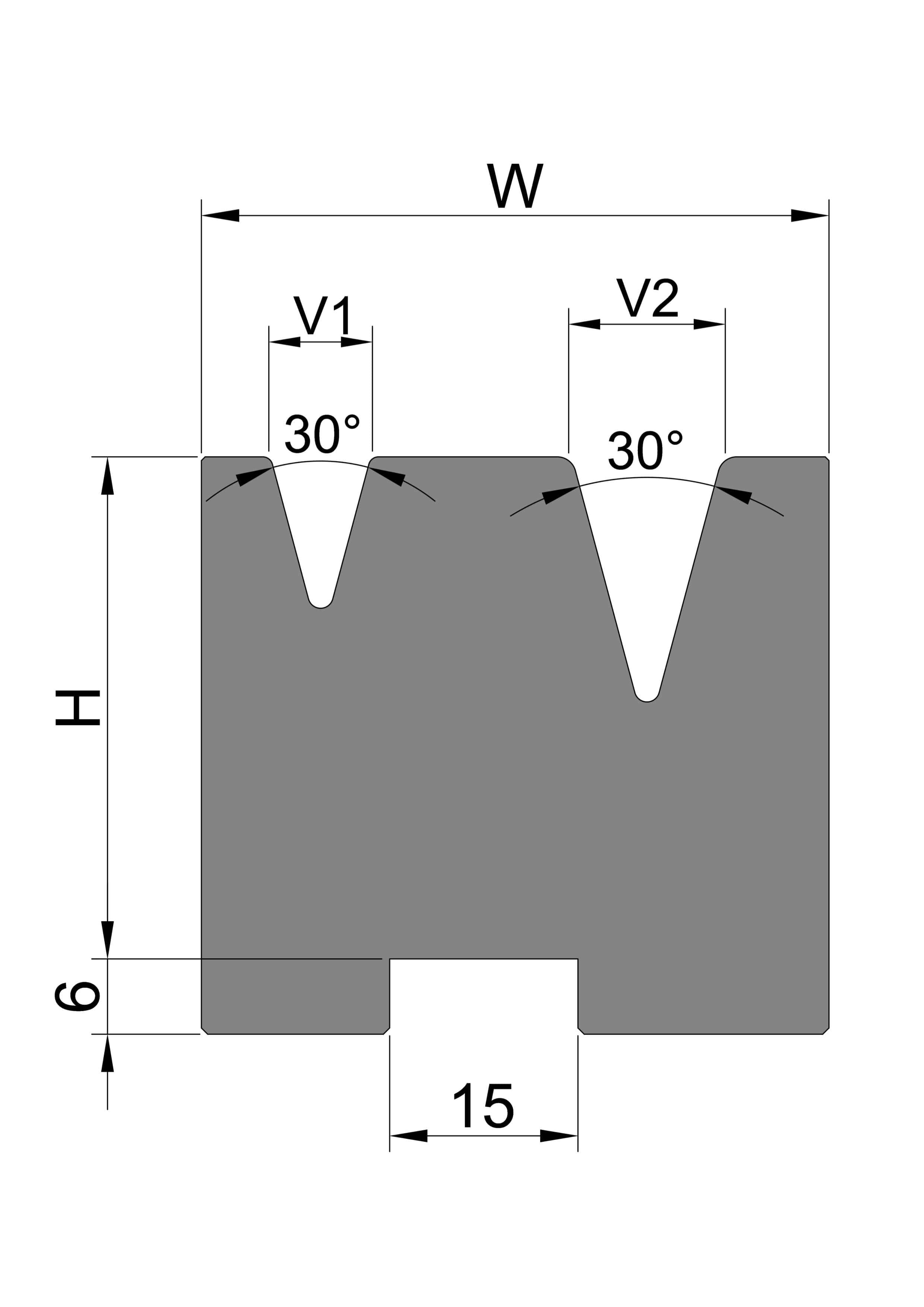

1110 / 30˚ / V

Self Centred 2 'V' Die - 30˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

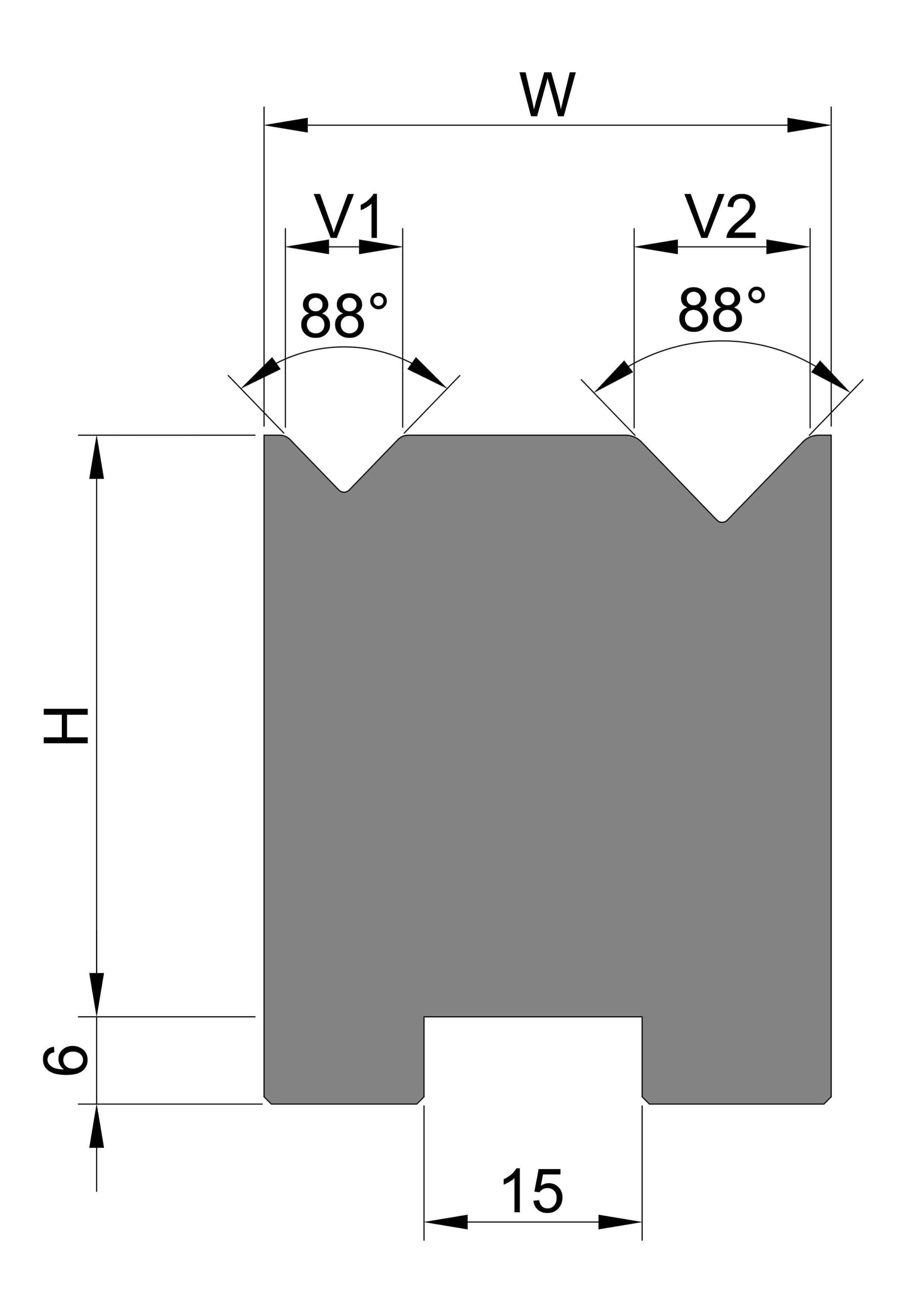

1111 / 88˚ / V

Self Centred 2 'V' Die - 88˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

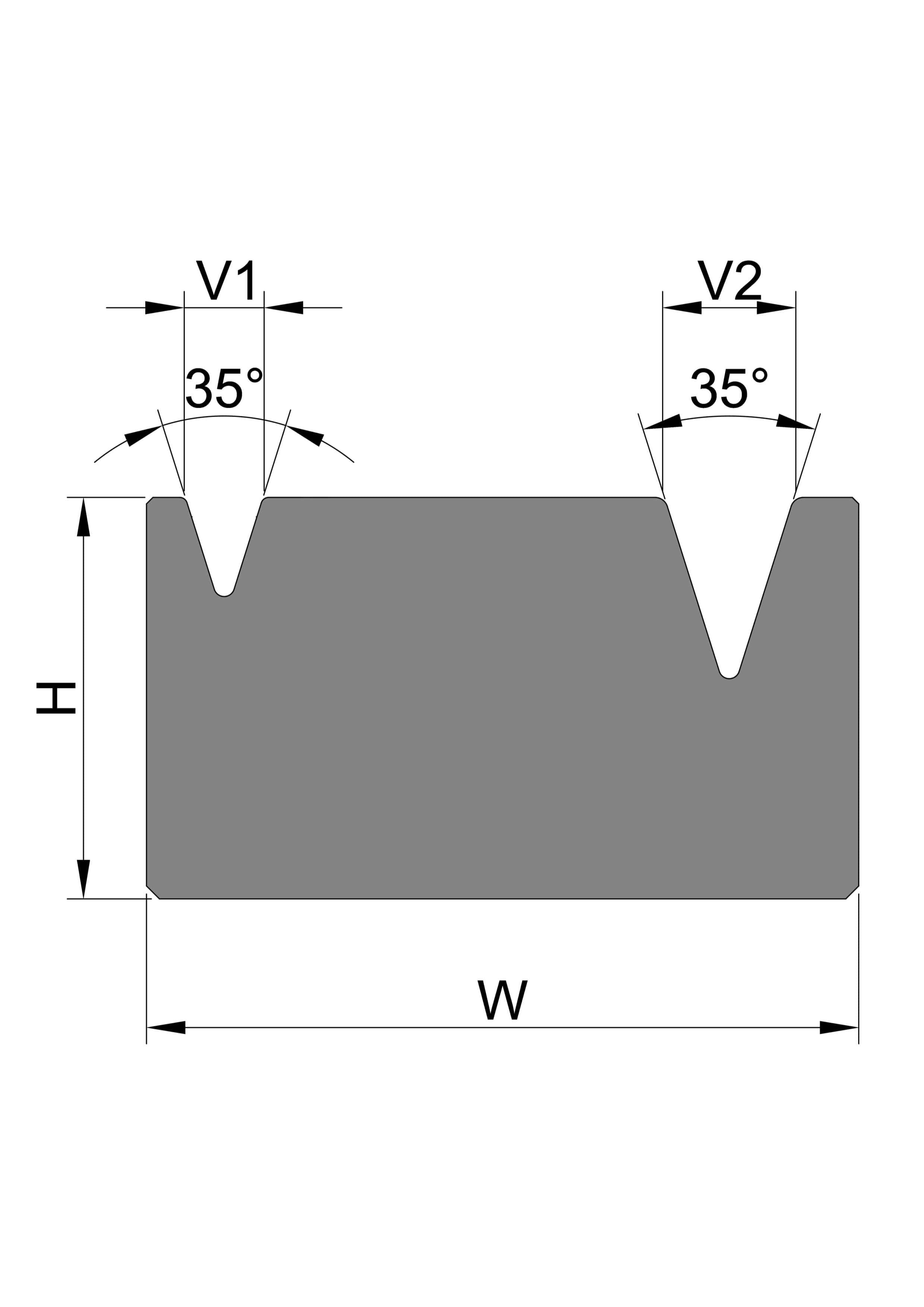

1112 / 35˚ / V

2 'V' Die - 35˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 30˚ to 90˚

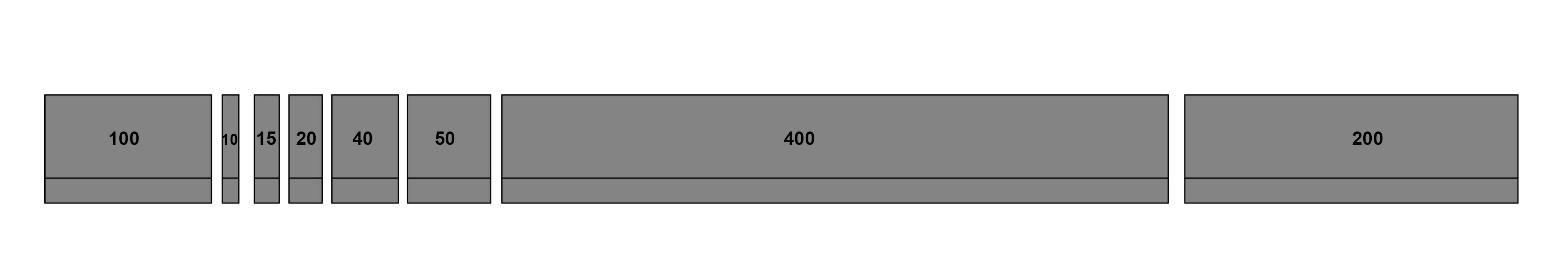

Sections for 835 mm

Sections for 835 mm

×
