Bending Tools / Bystronic Beyeler Style Tools
Request for Quote

Punch

Compatible with Press Brakes : Bystronic - Beyeler RFA, RF, R, S

4001 / 26˚ / R

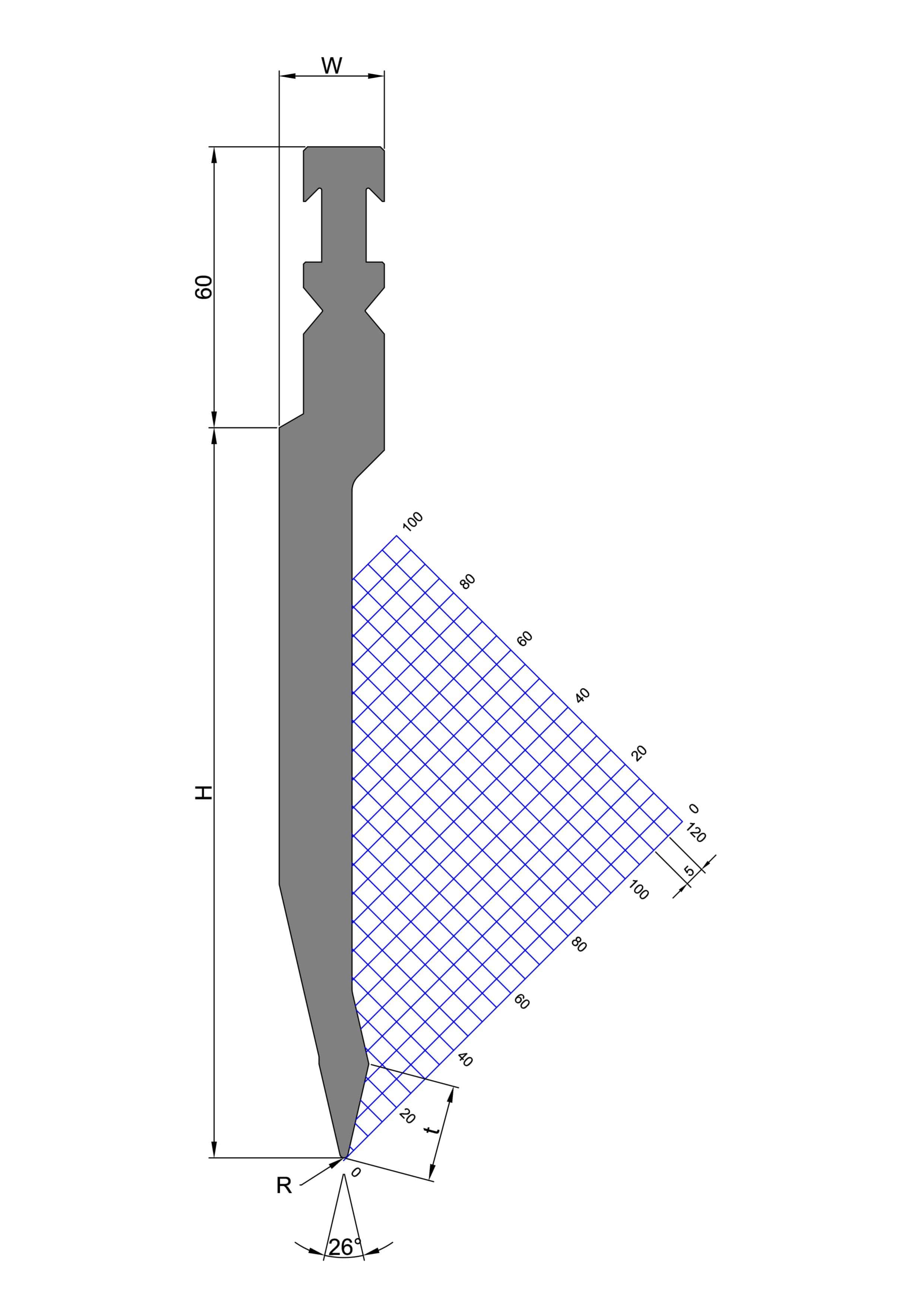

Acute Punch RFA - 26˚

Acute Punch RFA - 26˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 60˚

4002 / 85˚ / R

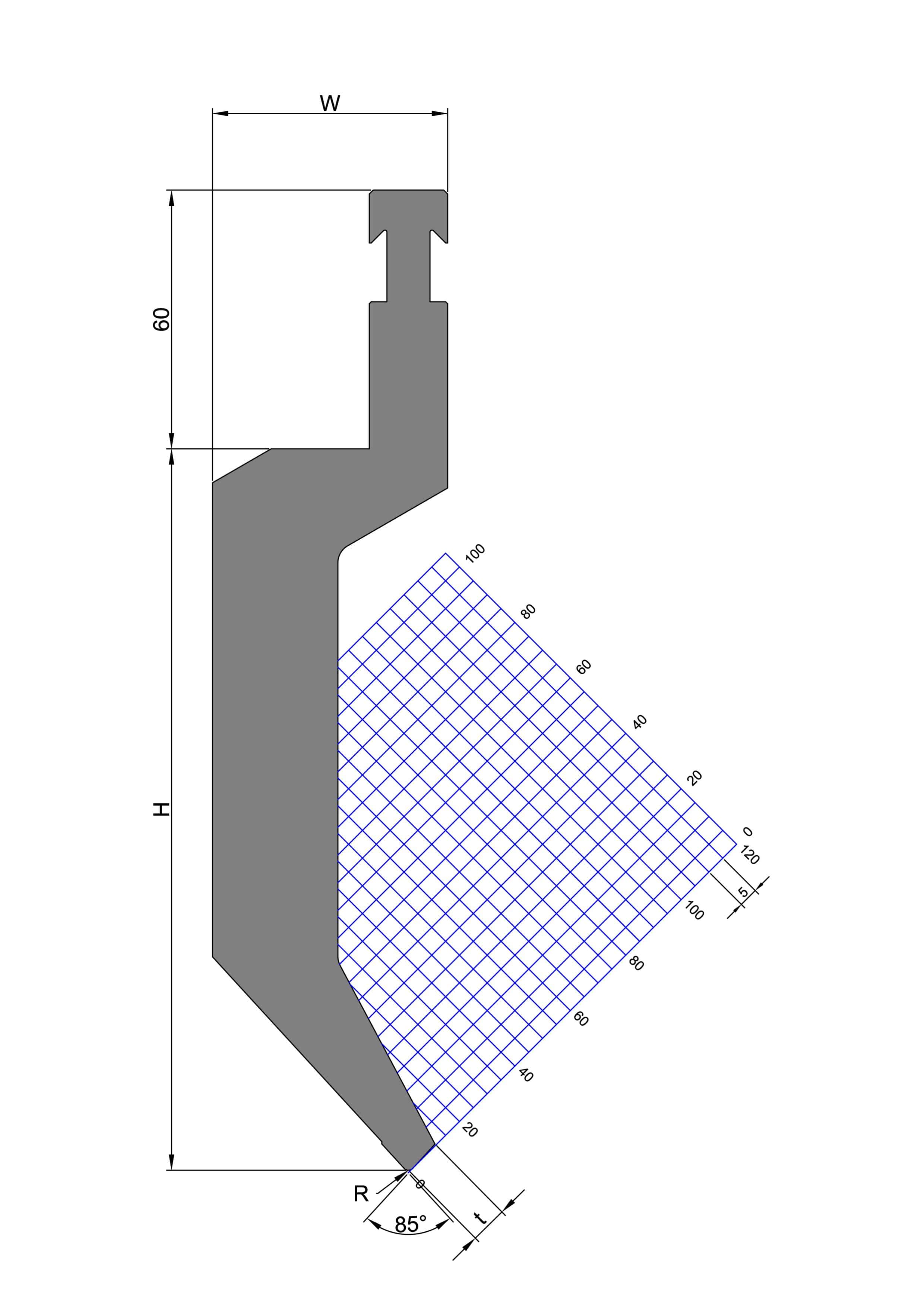

Gooseneck Punch RF - 85˚

Gooseneck Punch RF - 85˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 60˚ to 88˚

4003 / 28˚ / R

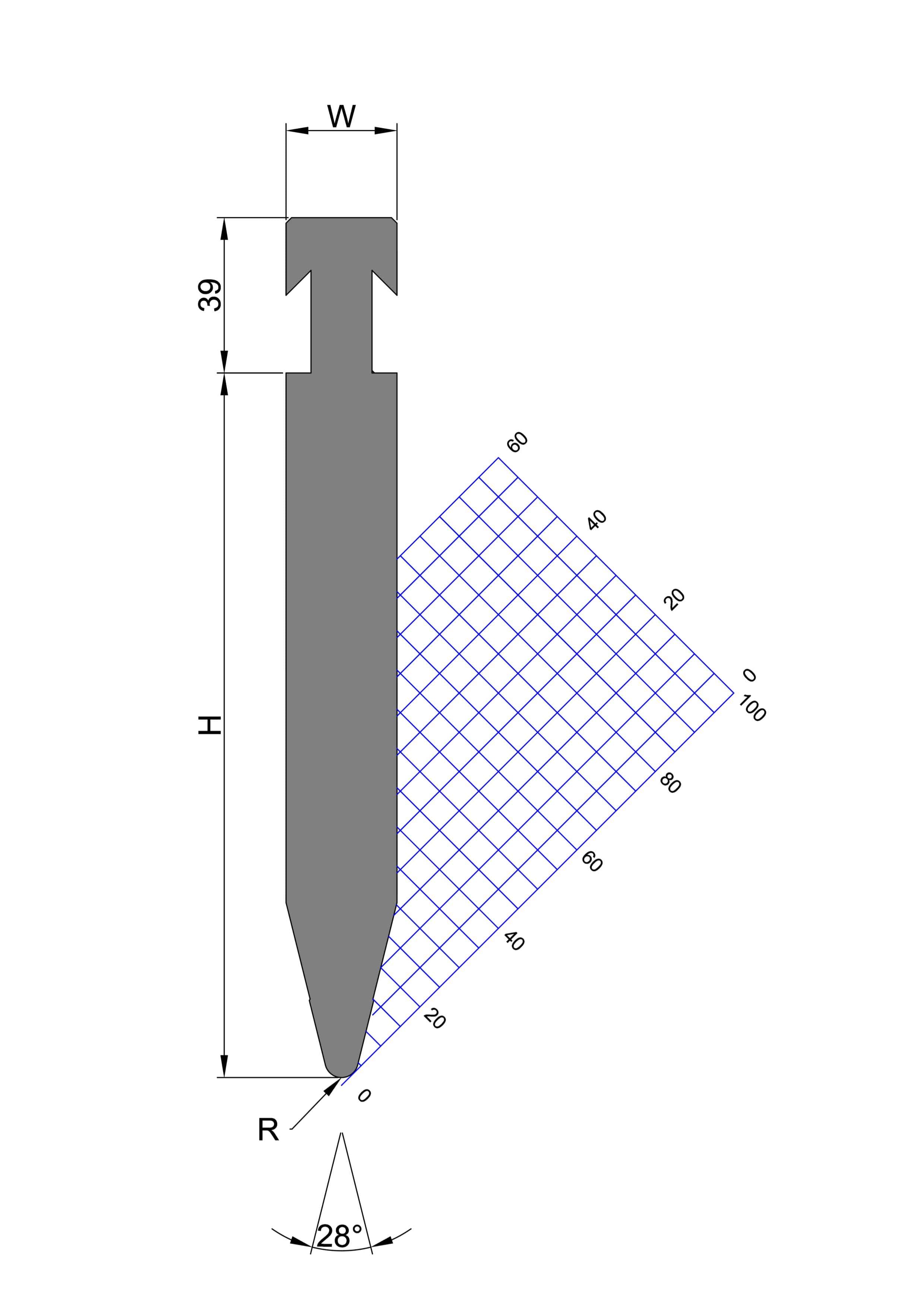

Straight Punch R - 28˚

Straight Punch R - 28˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 30˚

4004 / 28˚ / R

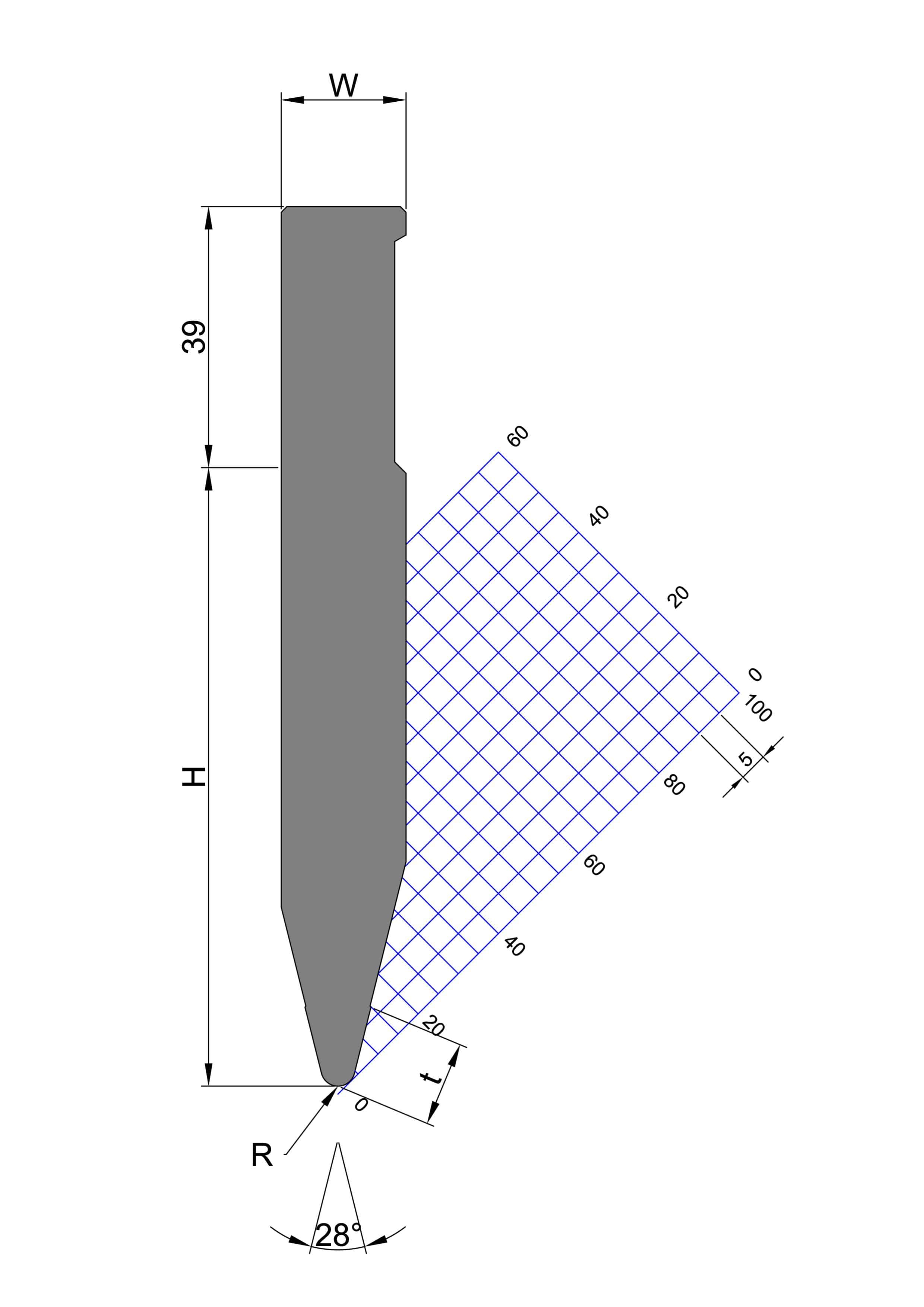

Straight Punch S - 28˚

Straight Punch S - 28˚

Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 30˚

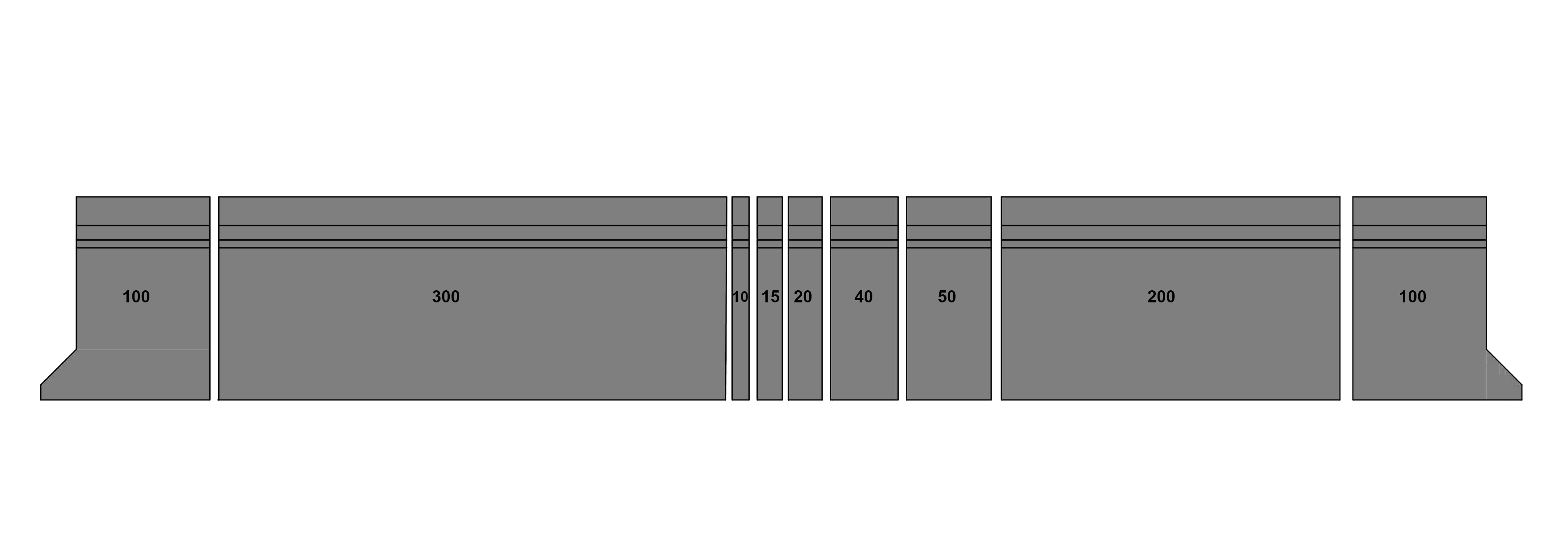

Sections for 835 mm

Sections for 835 mm
×
1
