Punch
3001 / 26˚ / R
×

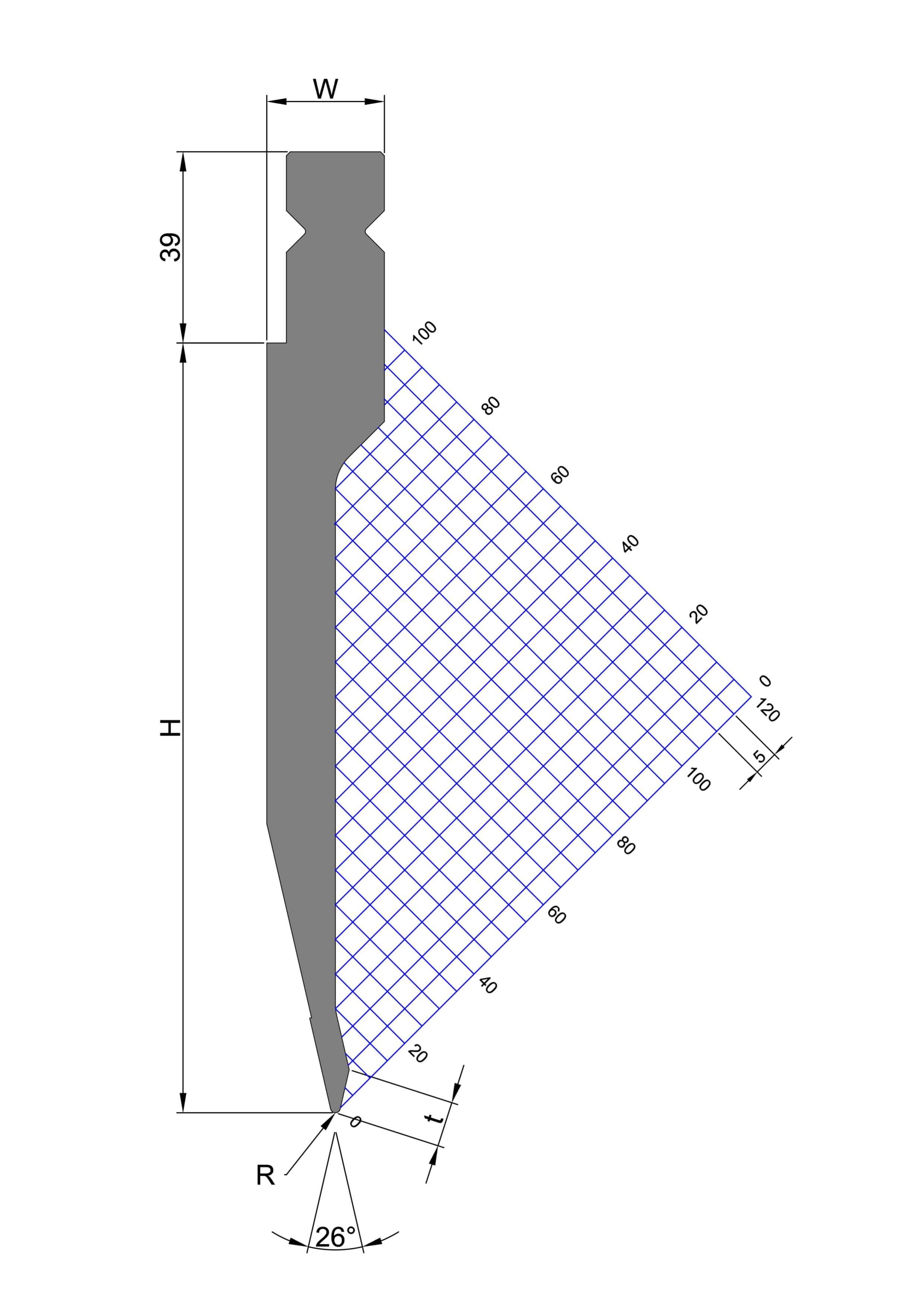

Acute Punch - 26˚
Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 60˚
3002 / 78˚ / R
×

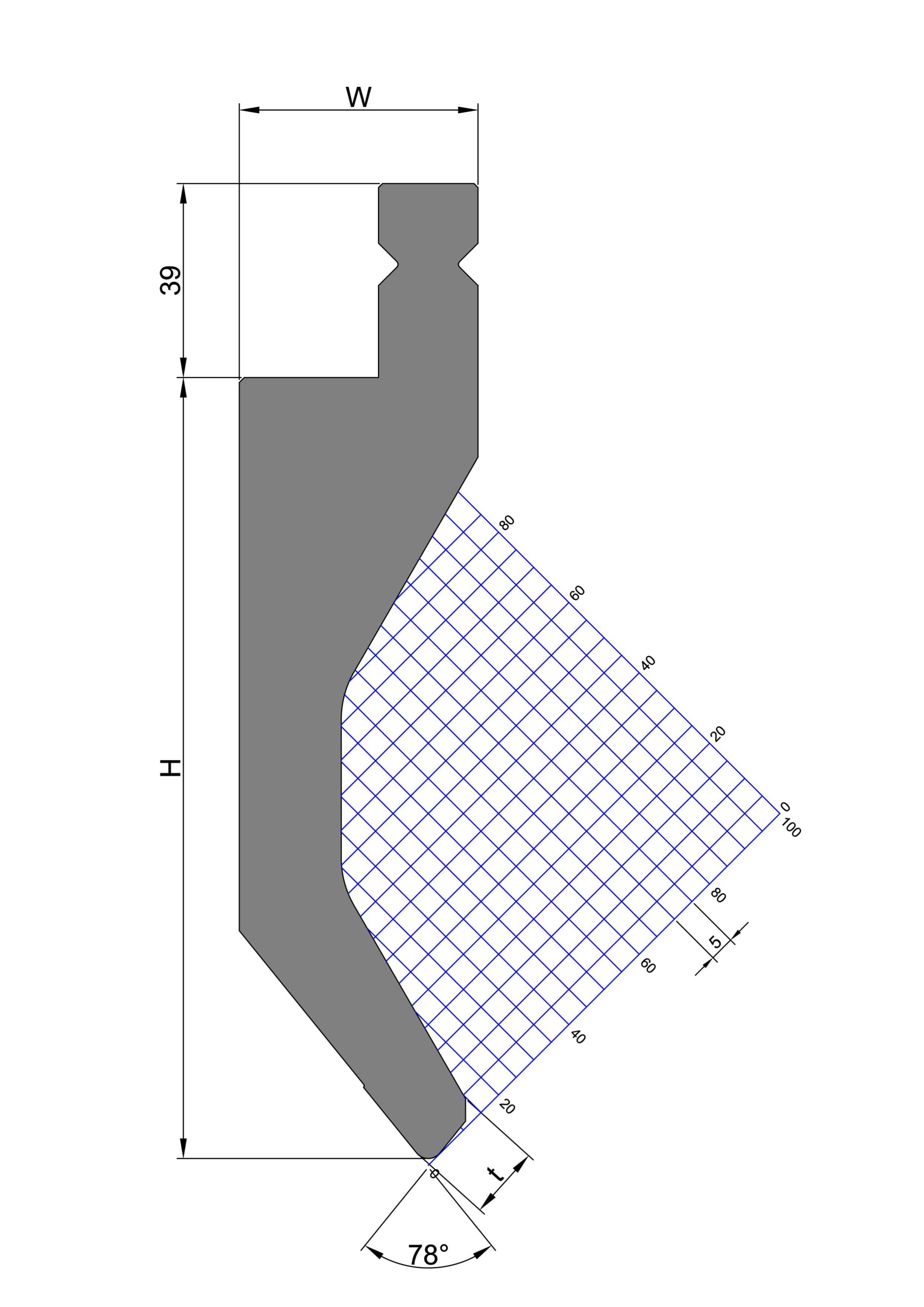

Gooseneck Punch - 78˚
Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 60˚ to 88˚
3003 / 26˚ / R
×

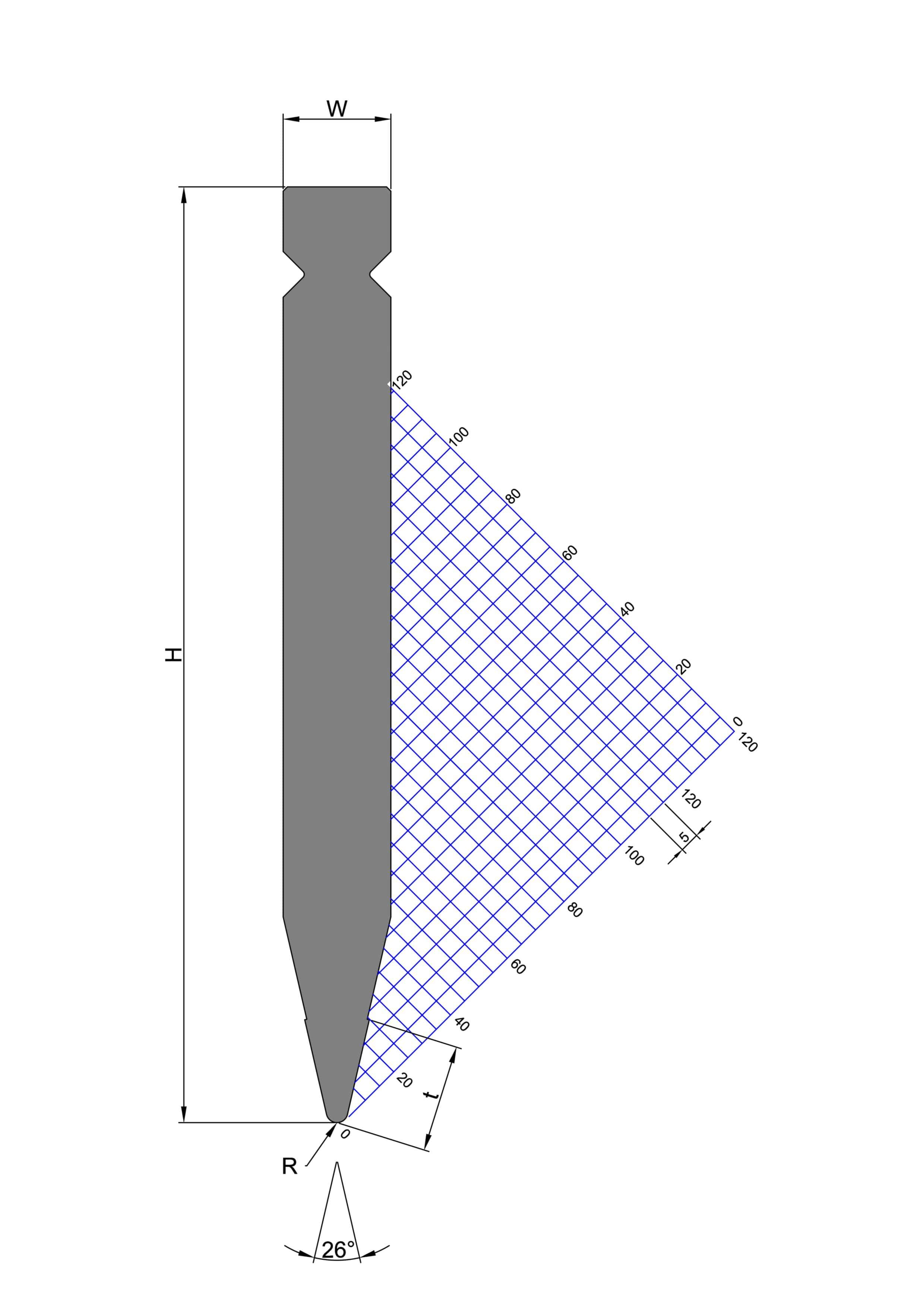

Straight Punch - 26˚
Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available from 26˚ to 30˚
3004 / 78˚ / R
×

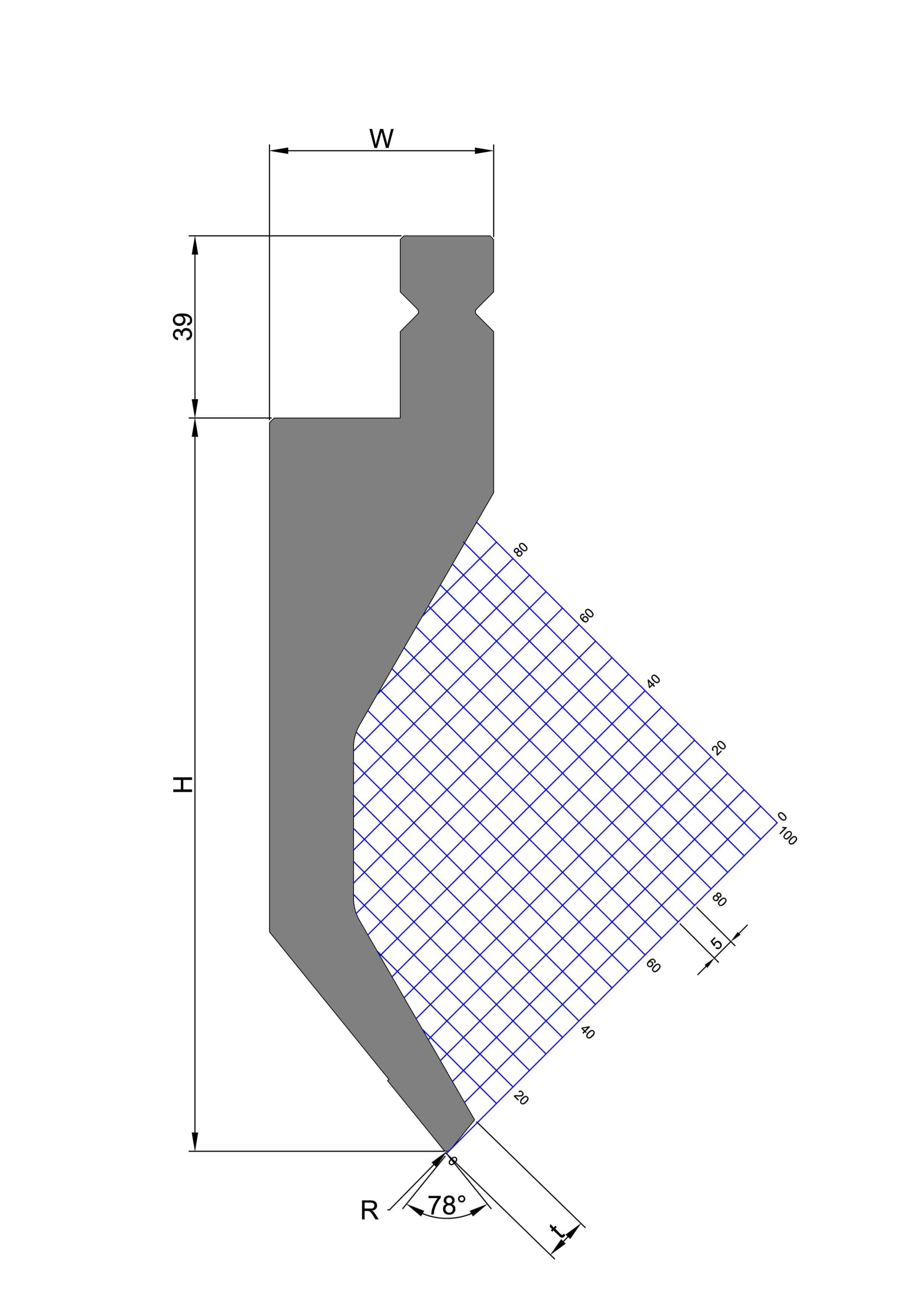

Swan Neck Punch - 78˚
Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Available at 78˚
3005
×
Flattening Punch
Material - 42CrMO4 / C45
Hardness - 45 - 48 HRC
Sections for 835 mm
×
